BG1767

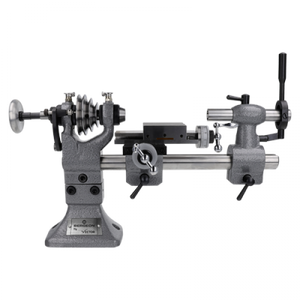

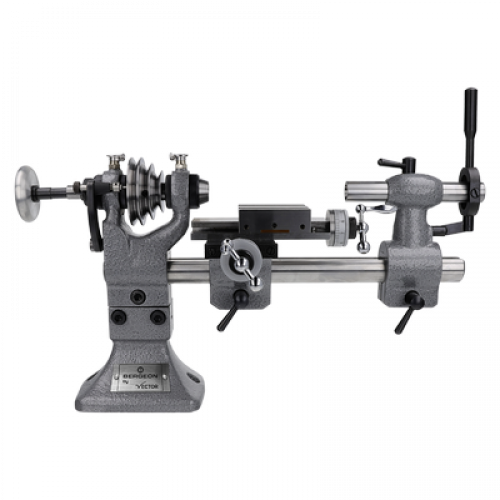

Bergeon Vector Lathe - 1767

This item will be ordered from the supplier upon purchase. Pricing and lead times may vary and are subject to change. If this item is time-sensitive, please email us at mail@julesborel.com or call (800) 776-6858 for a specific ETA. Special order items may be subject to limited cancellation or return restrictions.

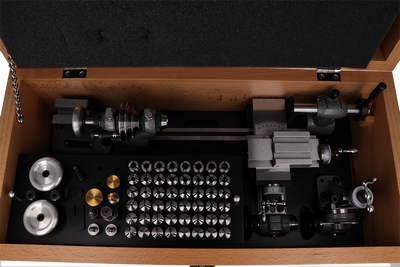

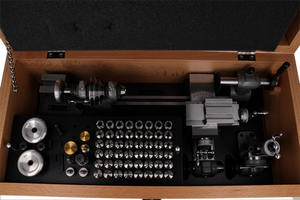

The Bergeon vector lathe combines exceptional precision with a comprehensive range of accessories. Supplied as a complete set, it includes a headstock with belt drive, tailstock with center and drilling support, cross slide, 48 collets (0.3–8.0 mm), and a full range of attachments and accessories.

Bergeon has further enhanced the standard vector lathe with improved carriage tolerances, more accurate headstock-to-tailstock alignment, a collet spindle adapted for Bergeon collets, integrated oilers, a redesigned carriage handle, and an updated wooden storage case.

Includes:

  • Headstock with belt drive
  • Tailstock with center and drilling support
  • Cross slide
  • Set of 48 collets (0.3–8.0 mm)
  • Milling attachment
  • Grinding attachment with grinding wheel and spacer ring
  • Filing rest (filing roller)
  • Sawing plate
  • Two hand graver rests (10 mm and 20 mm)
  • Three spindles
  • Workpiece chucks
  • Three brass discs
  • Welding plate for belt

Specifications

Weight
25.0 lb
