Witschi ChronoMaster

TS-CHRONOMASTER

Request pricing for this product

You can also email us at mail@julesborel.com or call (800) 776-6858 to request more information.

?

Integrated acceleration sensor

for automatic position detection

?

Backlash-free 45° grid

for precise test positions

?

Connection via USB

to your Windows PC or tablet

About the Product

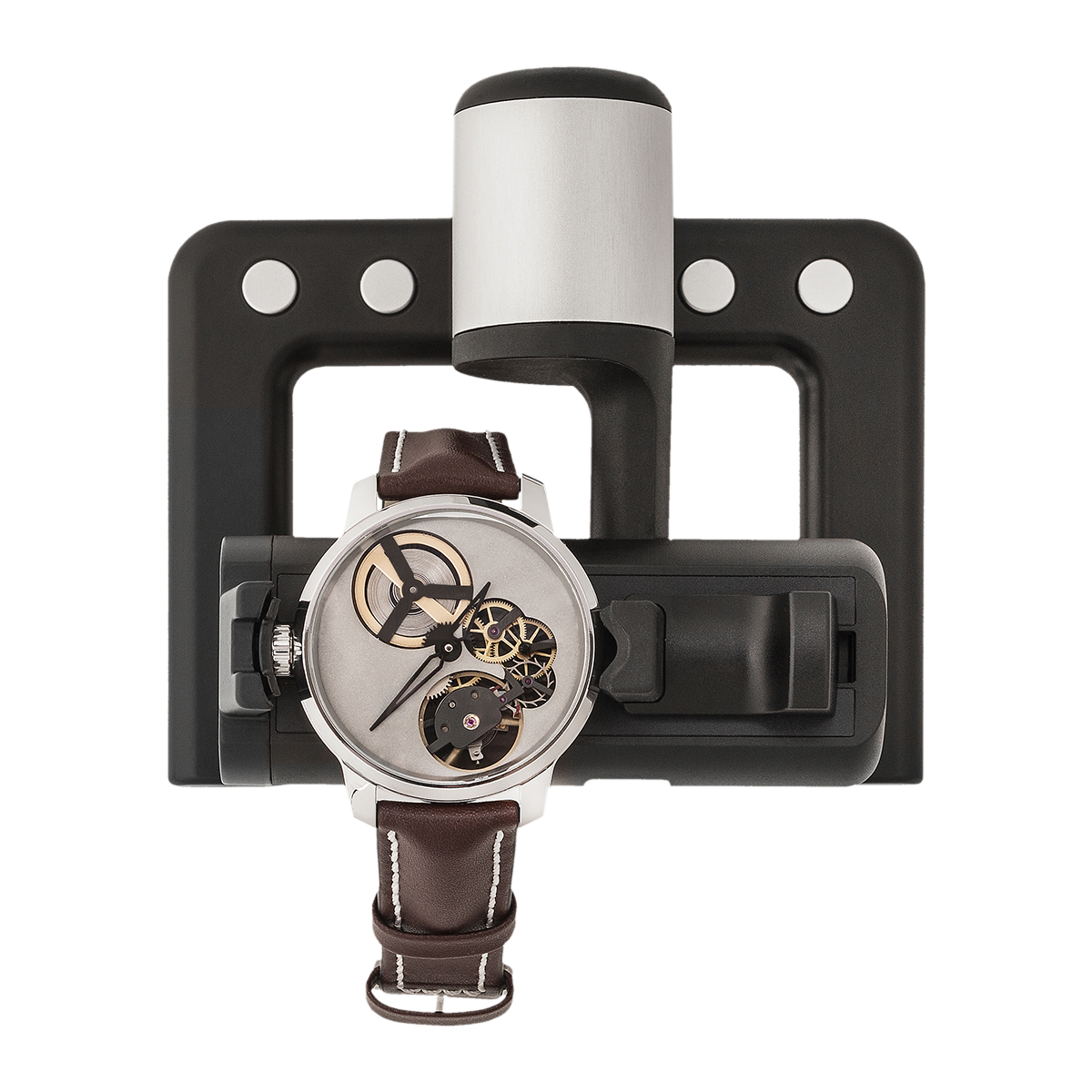

A smart, compact microphone! Designed for the measurement of mechanical watches and movements, the acoustic microphone is user-friendly thanks to its ergonomic and compact design.

Operation is easy and efficient via its four built-in pushbuttons. The ChronoMaster automatically detects six main test positions, four intermediate vertical positions, and two special positions. Positions are divided into 45° increments.

All ChronoMaster units are fully integrated into the WiCoTRACE central test parameter and result management system. With three manual versions and two automatic versions (not shown), there’s a ChronoMaster to meet every need.

Features

Features

  • Beat error
  • Amplitude
  • Timing of mechanical watch
  • Can be displayed on the ProofMaster PRO
  • Four, ergonomic push-buttons
  • Beat error
  • Amplitude
  • Timing of mechanical watch
  • Can be displayed on the ProofMaster PRO
  • Four, ergonomic push-buttons

Key Information

  • The only test mode available is Diagram, which includes Beat Error, Amplitude, and Timing. For advanced features, we recommend the ChronoMaster PRO.
  • Potential to upgrade Chronomaster to PRO version with purchase. Please contact us for more information.
  • Requires Witschi Terminal, Windows tablet, or PC to operate. Not compatible with ARM processors (e.g., Microsoft Surface X).
  • Works with the following operating systems: Windows 8.1 Pro & Windows 10 Pro via a USB connection.
  • Requires minimum 4 GB RAM & 64-bit operating system.
  • PC screen requires minimum resolution of 1366 x 768 pixels.
  • ChronoMaster will not operate on an Apple iPad.

Specifications

Balance wheel imbalance
No
Beat rate range
3,600 to 72,000 A/h, Automatic Detection
Bluetooth
No
Built in display
No
Device style
Requires Terminal or Windows-based PC/Tablet
Diagram continuous
Yes
Lift angle
10° to 90°, manual input
Measurement method
Acoustic
Microphone type
Manual
Polar tourbillon
No
Power reserve measurement
No
Reference time
TCXO ± 0.13 s/d
Scope
No
Sequence
No
Test positions
12
Trace
No
Vario
Yes
Watch type
Mechanical
Weight
2.2 lb

Q&A

Please contact us at 1-800-776-6858 to purchase an upgrade token, which allows you to convert your unit to a PRO.

No, you can only operate a ChronoMaster and ChronoMaster PRO on a Witschi Terminal, Windows-based tablet, or PC. If you'd like to use an Apple iPad, we recommend the ChronoMaster Air.
