What is the warranty for Witschi products?

The warranty for all Witschi products is two years.

How long does Witschi support their equipment?

Witschi will support and service their equipment for 10 years after a particular model is discontinued.

Request account access to see volume pricing

Sold Out

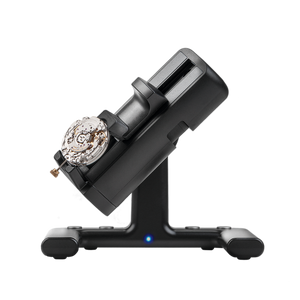

Witschi ChronoMaster Air

TS-CHRONOMASTER/AIR

Sold Out

You can also email us at mail@julesborel.com or call (800) 776-6858 to request more information.

Software for Windows and iOS

usable on several platforms

Wireless in battery mode

for more than 20 hours

Wireless connection via bluetooth

to a tablet, PC, or iPad

About the Product

A smart, compact microphone! The Chronomaster Air is even more versatile and user-friendly, due to its wireless Bluetooth connection. This measuring device can automatically detect twelve test positions, simplifying the comprehensive measurement and analysis of rate deviation, beat error, and amplitude.

The ChronoMaster Air can be operated via a USB port connected to the main electricity supply, as well as autonomously for up to 20 hours with its built-in rechargeable battery and wireless Bluetooth connection. It's compact and enables you to position it exactly where you want it without any cables getting in the way. Both the WiCoTRACE central test parameter and result management system and the Chronoscope Service offer the optimal software for every requirement.

Widows Device Display Modes:

Trace
Sequence
Polar
Scope
Diagram
- Beat error
- Amplitude
- Timing of mechanical watch

Apple iPad Display Modes:

Beat error
Amplitude
Timing of mechanical watch

^ Jump to top

Features

Automatic detection of the six main test positions, four intermediate vertical positions, and two special positions

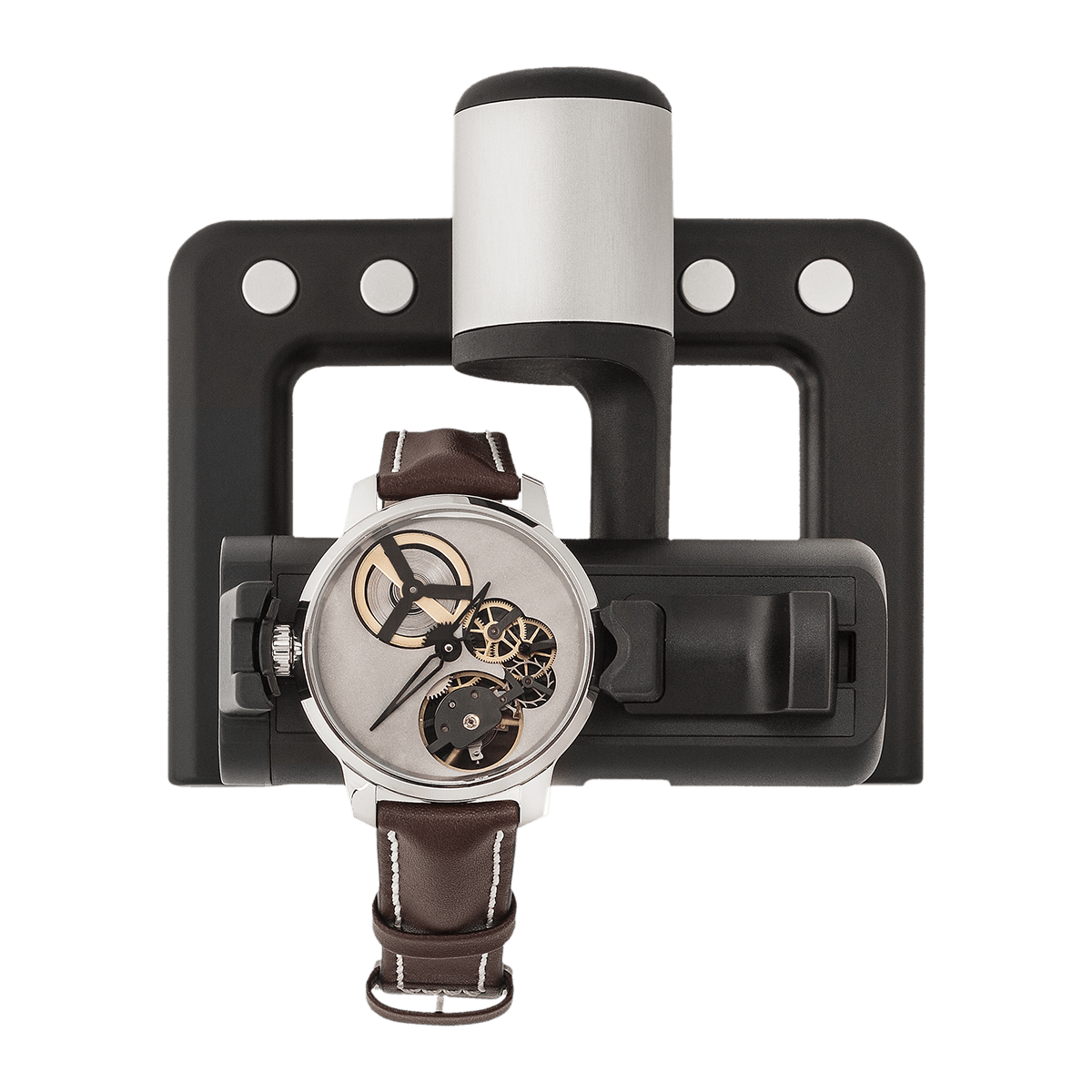

Secure mounting for large watches
Convenient and efficient operation thanks to built-in control keys
USB port type A for quick and easy connection to a PC or tablet
Precise division of test positions into 45° increments
Efficient software with guided Sequence Mode, adjustable up to ten test positions

Automatic detection of the six main test positions, four intermediate vertical positions, and two special positions
Secure mounting for large watches
Convenient and efficient operation thanks to built-in control keys
USB port type A for quick and easy connection to a PC or tablet
Precise division of test positions into 45° increments
Efficient software with guided Sequence Mode, adjustable up to ten test positions

^ Jump to top

Key Information

Requires Witschi Terminal, Windows tablet, or PC to operate. Not compatible with ARM processors (e.g., Microsoft Surface X).
Works with the following operating systems: Windows 8.1 Pro & Windows 10 Pro via a USB connection.
Requires minimum 4 GB RAM & 64-bit operating system.
PC screen requires minimum resolution of 1366 x 768 pixels.
Requires iPadOS 11.4 or later for Apple iPad usage.

ChronoMaster Air Data Sheet

Download

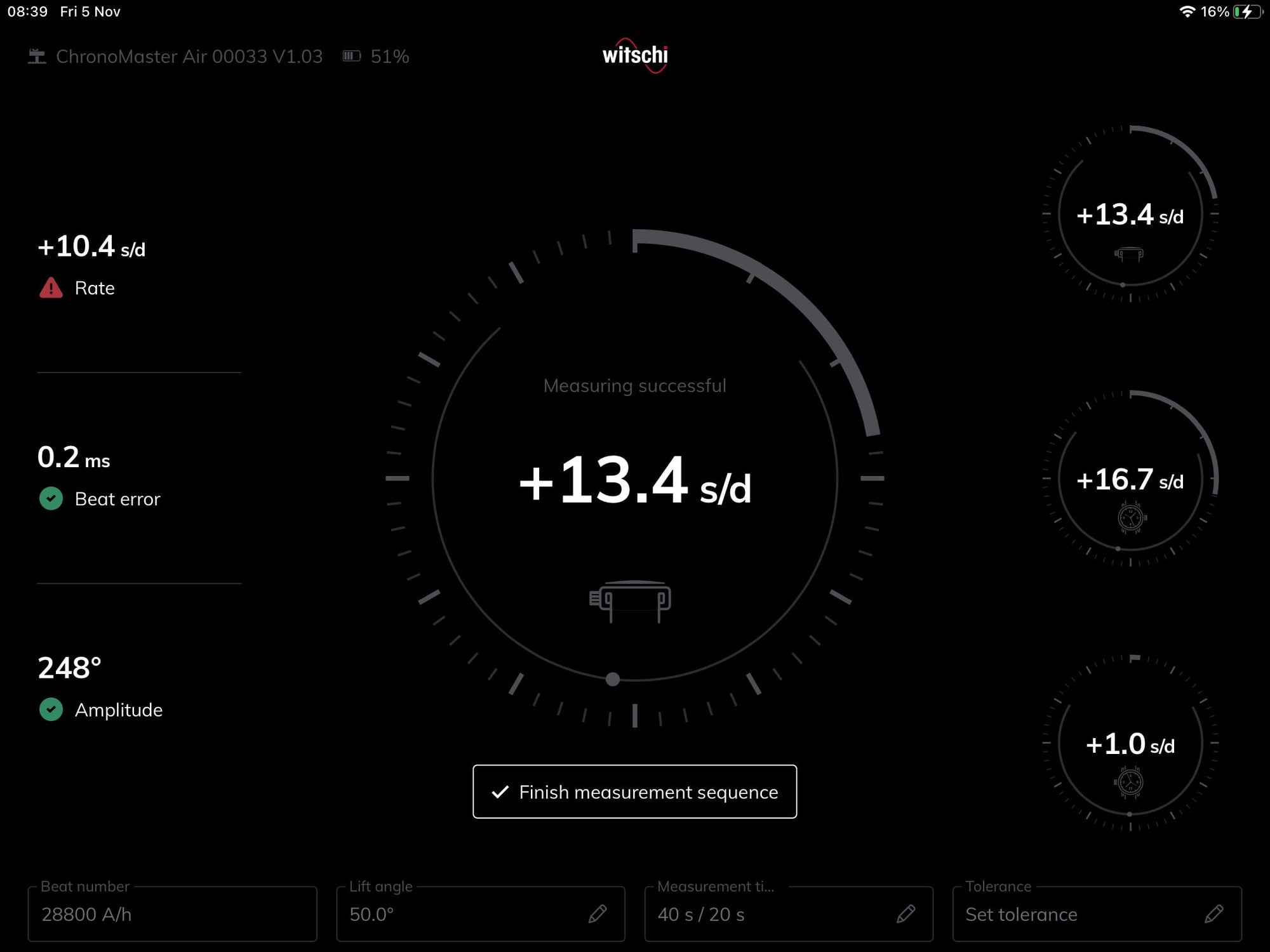

iPad Interface

Vario Display Mode

Scope Display Mode

Polar Display Mode

Trace Display Mode

^ Jump to top

Specifications

Balance wheel imbalance: No
Beat rate range: 3,600 to 72,000 A/h, Automatic Detection
Bluetooth: Yes
Built in display: No
Device style: Requires Terminal, Windows-based PC/Tablet, or Apple iPad
Diagram continuous: Yes
Lift angle: 10° to 90°, manual input
Measurement method: Acoustic
Microphone type: Manual
Polar tourbillon: Yes
Power reserve measurement: No
Reference time: TCXO ± 0.086 s/d
Scope: Yes
Sequence: Yes
Test positions: 12
Trace: Yes
Vario: Yes
Watch type: Mechanical
Weight: 4.0 lb

^ Jump to top

Q&A

: The warranty for all Witschi products is two years.
: Witschi will support and service their equipment for 10 years after a particular model is discontinued.

Ask a question

^ Jump to top
