Can I use any air compressor to operate the ProofMaster?

No. The compressor must have a maximum operating pressure of 11 BAR (165 psi) to properly maintain the ProofMaster's 10 BAR testing cycle.In addition, the compressor must be equipped with the proper filtration system to protect the tester. At a minimum, it should include:A 5-micron filter to remove moistureA 1/100-micron particle filter to remove oil and ultra-fine particlesUsing a compressor without the proper filtration can damage Witschi waterproof testing equipment and may affect the performance and longevity of the instrument.We recommend the Werther Silent Air Compressor (stock # AC6414), which meets the required pressure and filtration specifications for use with the ProofMaster.

Please request account access to see volume pricing.

Witschi ProofMaster

TS-PROOFMASTER

$8,595.00

TEST WITH AIR

to preserve the watch

VACUUM AND PRESSURE

up to 10 bar

10 SMART

test programs

About the Product

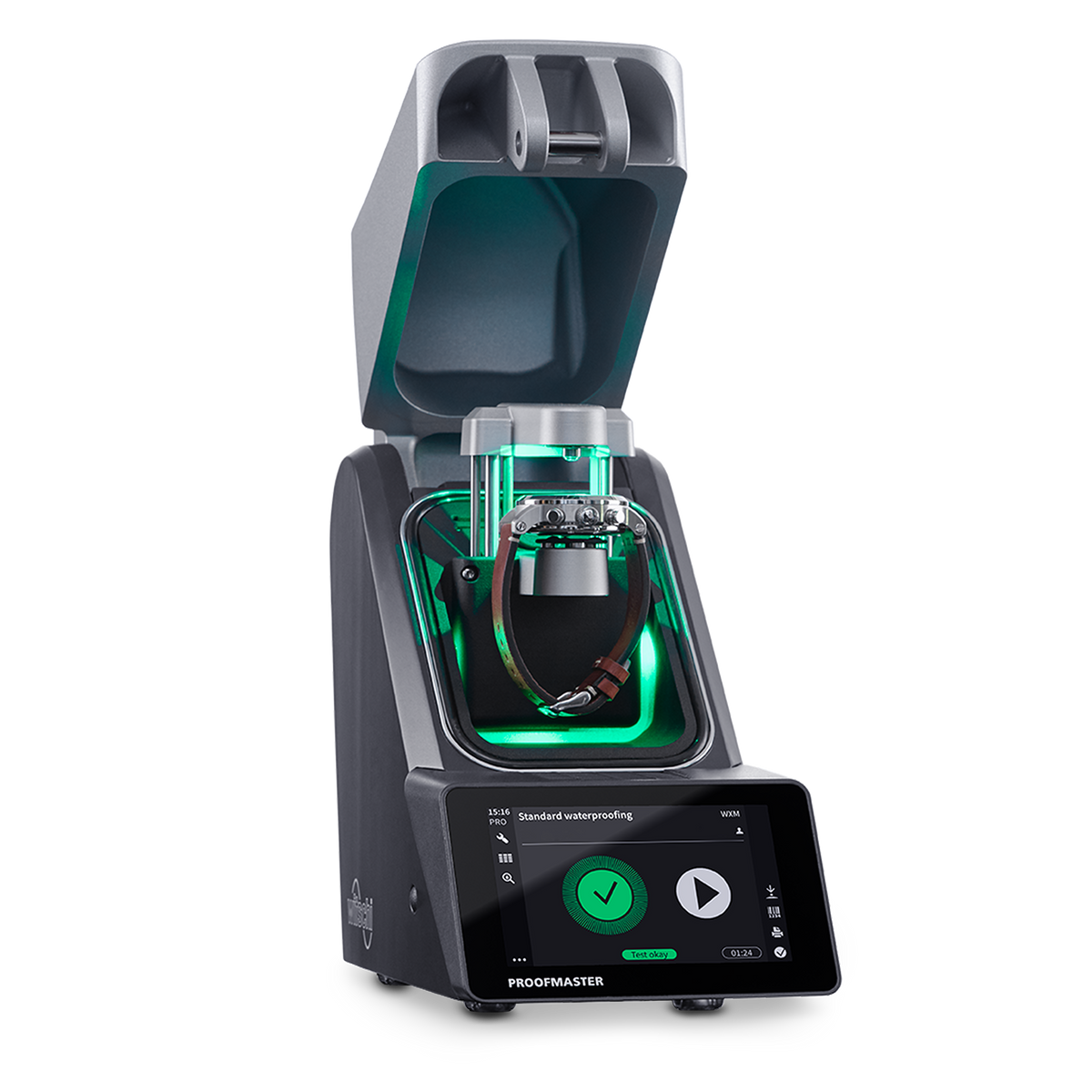

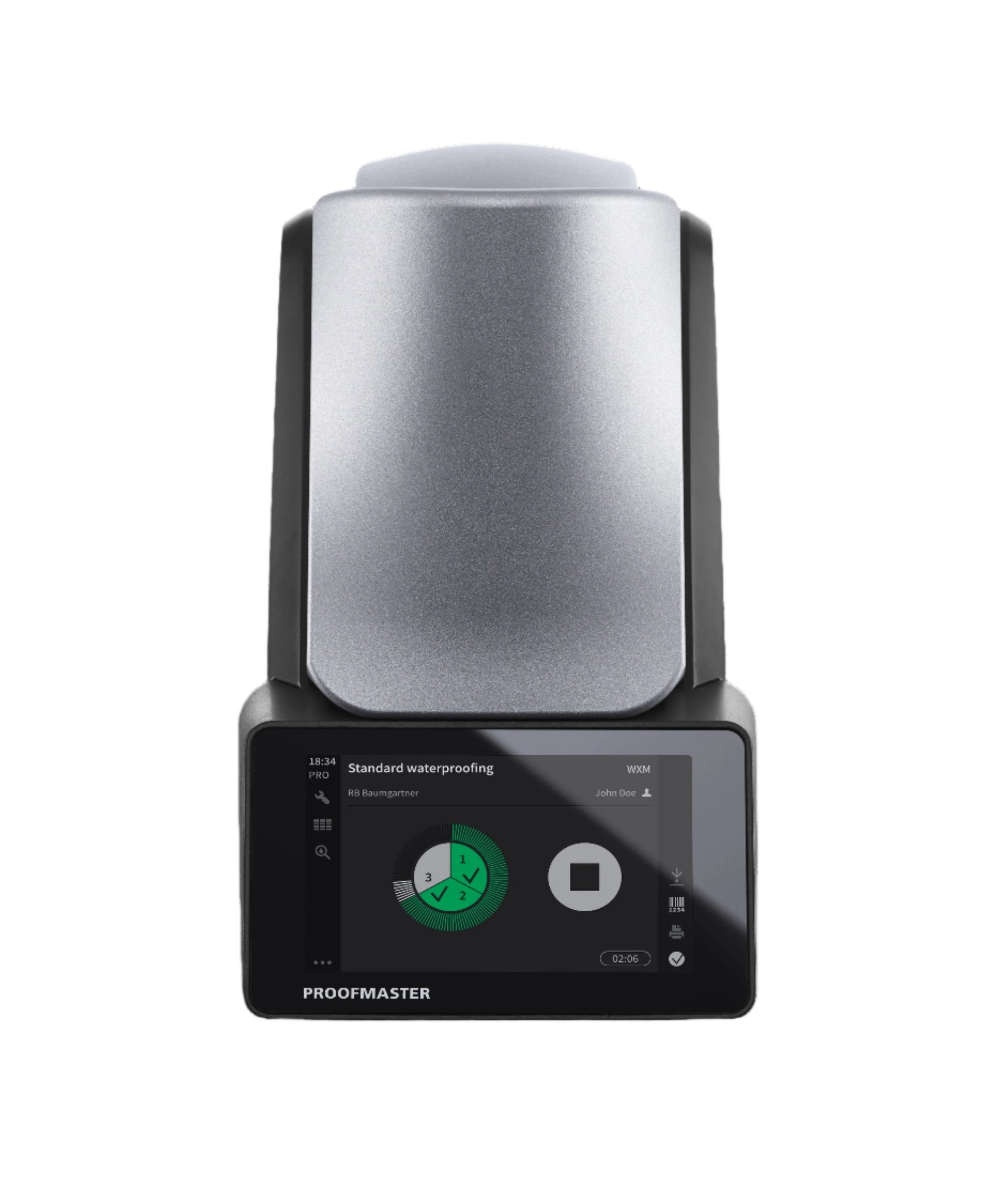

The ProofMaster tests the water resistance of watches conveniently with a fully automatic closing and test sequence. With its high level of operating convenience, the ProofMaster is the ideal tightness testing device for the following areas: watch service centers, watch retailers, watchmaking, and watchmaking laboratories.

The new generation ProofMaster – more compact, faster, more accurate. The latest technology and smart algorithms are part of its DNA. Based on many years of experience, a device has been designed that is characterized by the easiest possible operation. It impresses with rapid and reliable tightness testing, small space requirements, optimal protection of watches against scratching, and its ergonomic design. The ProofMaster can be used as a stand-alone device or in conjunction with the PC software Wicotrace. This provides additional possibilities for the measurement analysis and the professional administration of parameters and results, either locally or centrally. Connect a ChronoMaster to your ProofMaster and have your rate, beat error, and amplitude displayed directly on the screen!

^ Jump to top

Features

Displays rate, beat error, & amplitude when connected to any ChronoMaster model
Test vacuum down to -0.7 BAR
Test pressure up to 10 BAR
Automatic opening and closing of lid
5-inch, high resolution touchscreen

Displays rate, beat error, & amplitude when connected to any ChronoMaster model
Test vacuum down to -0.7 BAR
Test pressure up to 10 BAR
Automatic opening and closing of lid
5-inch, high resolution touchscreen

^ Jump to top

Key Information

Proofmaster requires a 11 BAR minimum compressor (sold separately). Please see item AC6414.
Minimum two filter system is required: one 5-micron filter to remove moisture and one 1/100-micron coalescing filter to remove oil and super fine particles.
Watch holding capacity of 70mm watch diameter and 30mm watch height.
Always inspect a watch before testing. If the crystal shows any sign of damage, DO NOT test watch.
Install Bluetooth interface kit TS-95.1511 into your TS-JB01 printer and the supplied USB transmitter dongle into either USB port on your ProofMaster or ProofMaster Pro to print wirelessly from one or multiple devices. (Interface board with one transmitter dongle included in the interface kit; additional USB transmitter dongles sold separately.)

ProofMaster Data Sheet

Download

^ Jump to top

Specifications

Calculation of leak rate: No
Customizable test programs: 0
Fixed test programs: 10
Integrated compressor: No
Leak finder: No
Max pressure test: 10 Bar
Max qty of pressure levels per test: 2
Max vacuum test: -0.7 Bar
Measuring time: Automatic
Results savings: 0
Height: 9.6 in
Width: 5.9 in
Weight: 16.7 lb

^ Jump to top

Q&A

The warranty for all Witschi products is two years.

No. The compressor must have a maximum operating pressure of 11 BAR (165 psi) to properly maintain the ProofMaster's 10 BAR testing cycle.

In addition, the compressor must be equipped with the proper filtration system to protect the tester. At a minimum, it should include:

A 5-micron filter to remove moisture
A 1/100-micron particle filter to remove oil and ultra-fine particles

Using a compressor without the proper filtration can damage Witschi waterproof testing equipment and may affect the performance and longevity of the instrument.

We recommend the Werther Silent Air Compressor (stock # AC6414), which meets the required pressure and filtration specifications for use with the ProofMaster.

The recommended service interval is 100,000 test cycles. Please contact us to arrange service.

Witschi will support and service their equipment for 10 years after a particular model is discontinued.

If it is currently set at 160 psi, run a 10-BAR test and observe the psi pressure as it drops on the gauge. Note the pressure when the compressor turns on to refill the tank. The compressor must turn on at 10-BAR or 145 psi or the “NO AIR” warning will appear on the ProofMaster.
