What is the warranty for Witschi products?

The warranty for all Witschi products is two years.

How long does Witschi support their equipment?

Witschi will support and service their equipment for 10 years after a particular model is discontinued.

Request account access to see volume pricing

Sold Out

Witschi ProofMaster CP Pro

TS-PROOFMASTER/CP/PRO

Sold Out

You can also email us at mail@julesborel.com or call (800) 776-6858 to request more information.

TEST WITH AIR

to preserve the watch

INTEGRATED COMPRESSOR

up to 5 bar

LEAKFINDER FUNCTION

to identify location of leak

8 SMART

test programs

About the Product

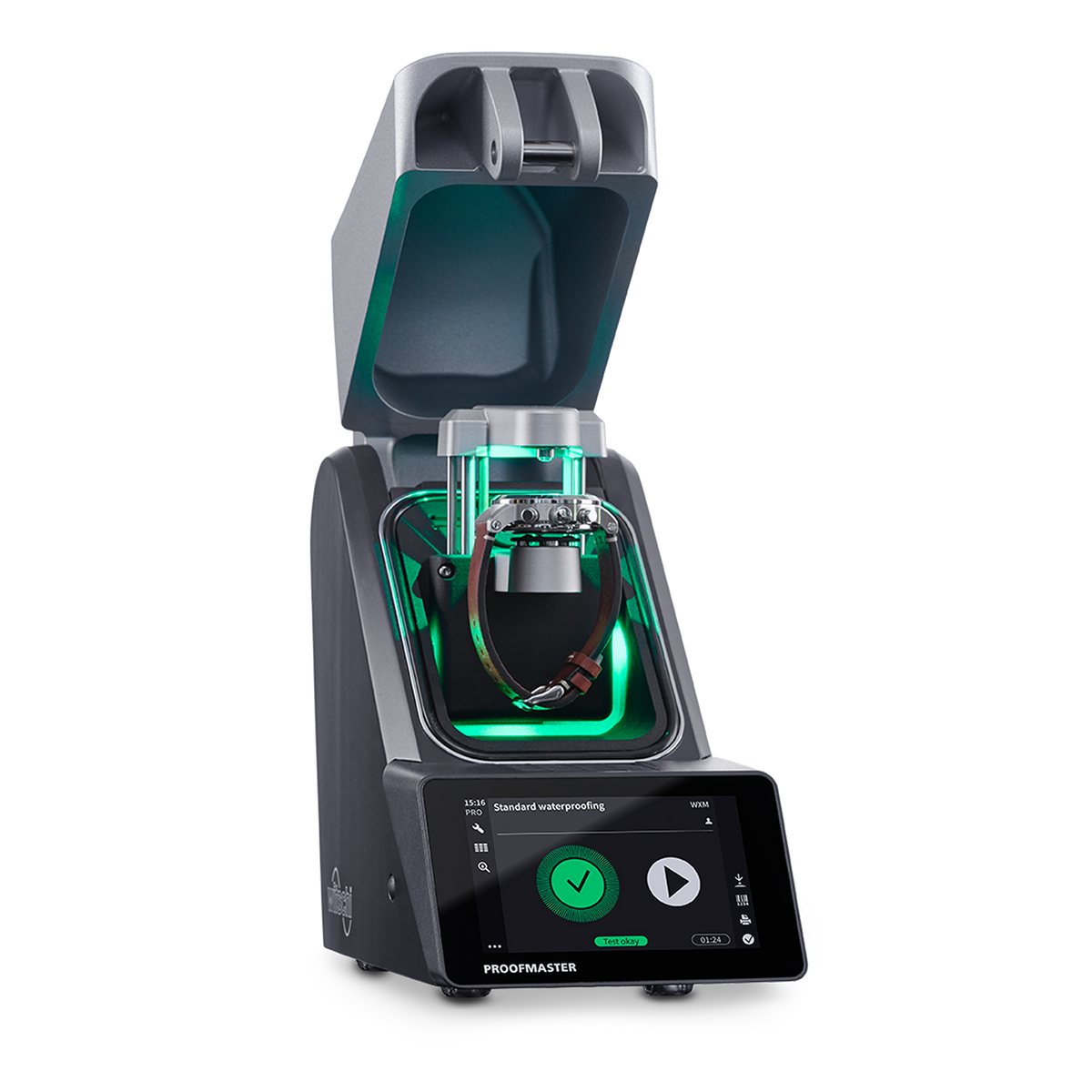

The ProofMaster CP Pro does not need a compressed air supply because of its integrated compressor. Its smart test programs, automatic test chamber, and sensor actuation allow all tightness tests to be carried out within one integrated unit. The ProofMaster’s high-performance testing algorithm delivers high precision and reliability.

A complete testing solution for boutiques and services: connect your ChronoMaster to the ProofMaster to analyze rate deviation, beat error, and amplitude on your screen. This enables you to deliver comprehensive watch testing with ease in both your shops and your service centers. The ProofMaster CP can work as a standalone device, or it can be connected directly to a Wicotrace database. Wicotrace provides additional analysis and export features, as well as professional local and central results management.

^ Jump to top

Features

Displays rate, beat error, & amplitude when connected to ChronoMaster/ChronoMaster Air
Connect directly to WiCoTRACE database
Integrate barcode scanner to identify watch
5-inch, high resolution touchscreen
LeakFinder function to identify leaks
Test vacuum down to -0.5 BAR
Test pressure up to 5 BAR
Automatic sensor input, test chamber closure, & locking
Adjustable watch support for protection against scratches
Four universal testing programs
Results of last 100 tests stored for reference
Test any combination of pressure & vacuum
Offers the ability to input 50 custom testing programs

Displays rate, beat error, & amplitude when connected to ChronoMaster/ChronoMaster Air
Connect directly to WiCoTRACE database
Integrate barcode scanner to identify watch
5-inch, high resolution touchscreen
LeakFinder function to identify leaks
Test vacuum down to -0.5 BAR
Test pressure up to 5 BAR
Automatic sensor input, test chamber closure, & locking
Adjustable watch support for protection against scratches
Four universal testing programs
Results of last 100 tests stored for reference
Test any combination of pressure & vacuum
Offers the ability to input 50 custom testing programs

^ Jump to top

Key Information

Watch holding capacity of 70mm watch diameter and 30mm watch height.
Always inspect a watch before testing. If the crystal shows any sign of damage, DO NOT test watch.
Install Bluetooth interface to your TS-JB01 printer and a dongle to your ProofMaster CP to print wireless (sold separately).

ProofMaster CP Data Sheet

Download

^ Jump to top

Specifications

Calculation of leak rate: Yes
Customizable test programs: 50
Fixed test programs: 8
Integrated compressor: Yes
Leak finder: Yes
Max pressure test: 5 Bar
Max qty of pressure levels per test: 3
Max vacuum test: -0.5 Bar
Measuring time: Automatic or Adjustable from 20 to 600 s
Results savings: 100
Height: 9.6 in
Width: 5.9 in
Weight: 20.0 lb

^ Jump to top

Q&A

: The warranty for all Witschi products is two years.
: Witschi will support and service their equipment for 10 years after a particular model is discontinued.
