Witschi Terminal

TS-TERMINAL

?

SIMULTANEOUSLY RUN

two measurement devices via USB

?

MODULAR & FLEXIBLE

display unit

?

HIGH-RESOLUTION

7" display

?

Collect data

with Wicotrace 360°

About the Product

The display unit for all ChronoMaster and QuartzMaster devices offers the greatest flexibility in the smallest space. The compact Terminal was developed for use on a workbench and can be tilted as required. It has a bright and high-resolution 7" display with touch function, and its ergonomic design enables users to work productively with the user-friendly software.

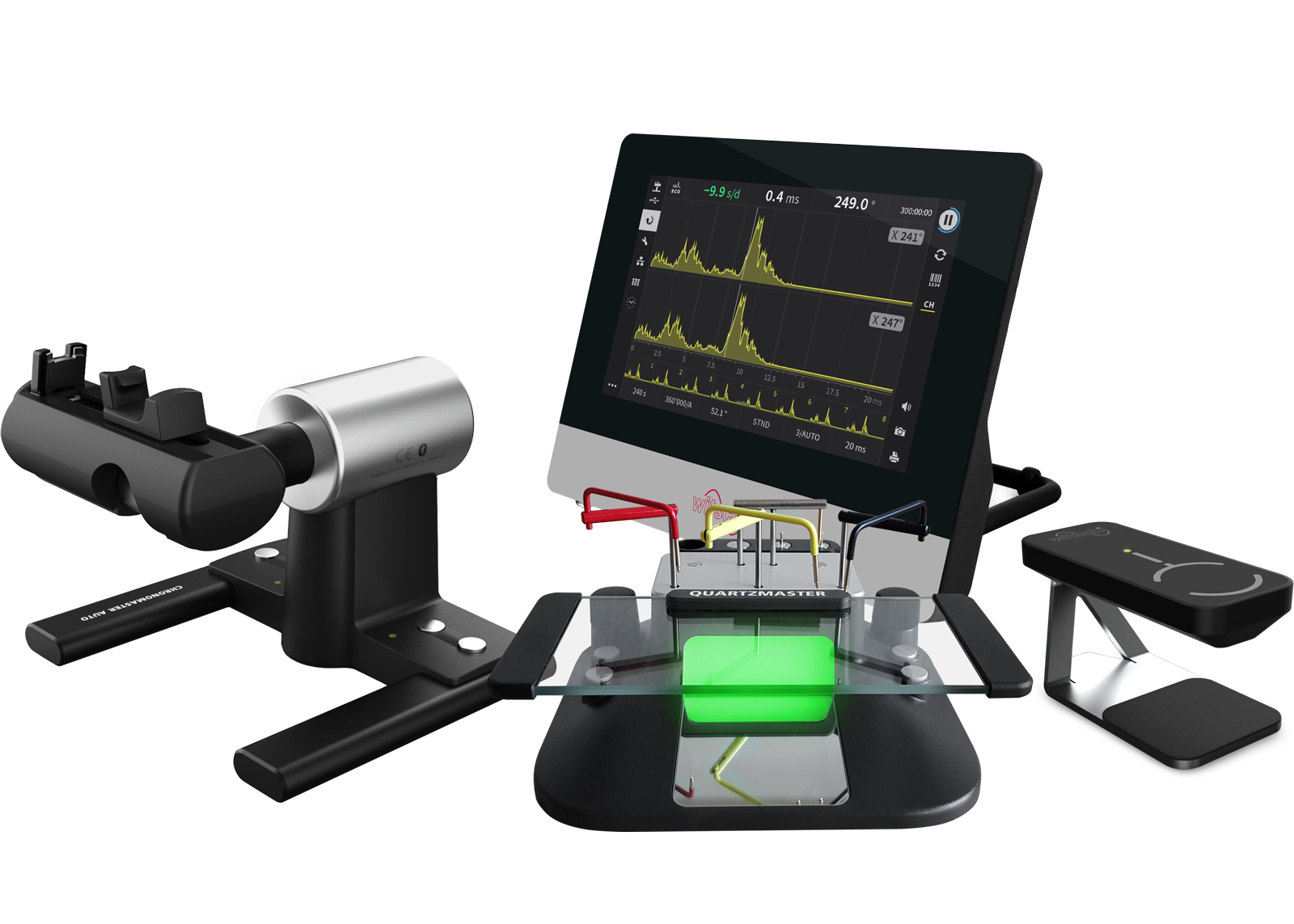

You decide which devices are connected to the Terminal. Whether measuring mechanical watches, quartz watches, or both together, the Terminal can be combined with up to four different measuring devices and expanded at any time.

The Terminal can directly access the test programs of the parameter and result management system Wicotrace. The measurement results are stored on the Wicotrace database following measurement and can be further processed from there.

Features

Features

  • Up to two measurements running simultaneously
  • High resolution, 7" display screen
  • Touchscreen and adjustable tilt
  • Connect up to four different measuring devices via USB or Bluetooth
  • Up to two measurements running simultaneously
  • High resolution, 7" display screen
  • Touchscreen and adjustable tilt
  • Connect up to four different measuring devices via USB or Bluetooth

Key Information

  • While you can connect four devices, you can only run two devices simultaneously. In order to operate four devices simultaneously, we recommend the TERMINAL PRO.
  • Potential to upgrade Terminal to PRO version with purchase. Please contact us for more information.
  • Languages: English, Spanish, French, Italian, German

Specifications

Dimensions
7.75 in-6.5 in-5 in
Weight
3.0 lb

Q&A

Every Witschi Terminal and microphone is available in both a Standard Version and a Pro Version.

The Standard Version provides the core timing functions:

  • Terminal: Diagram and Vario display modes, with support for up to two microphones simultaneously.
  • Microphone: Standard Watch Expert measurements, including Rate, Beat Error, Amplitude, and the trace line.

The Pro Version adds:

  • Sequence, Scope, and Trace display modes.
  • Support for up to four microphones simultaneously when using a Pro Terminal.

You only need one Pro device to access these advanced display modes. In most cases, a Pro Terminal is the most economical choice because it enables the additional features for every Standard microphone connected to it.

A Pro microphone is typically recommended only when the microphone will be connected directly to a computer without a Terminal, since there is no Terminal available to enable the Pro display modes.

Please contact us at 1-800-776-6858 to purchase an upgrade token, which allows you to convert your unit to a PRO.
